Something New-ish?
Cuyahog Valley National Park – US-0020 is a massive park. It stretches a good way between Cleveland and Akron. There are over 100 miles of hiking trails scattered throughout the park and there are many nooks and crannies. On Saturday morning, I headed out to do an activation. I had some time and I wanted to go down to the Quarry area to work. But as I was driving, it occurred to me that going down into the valley after a couple of weekends of Less Than Stellar Propagation might be adding another layer of difficulty to something that had the makings of a rough day for the bands anyway.
Driving along, I came upon the Shady Knoll picnic area and pulled off there. It’s nothing more than a couple of parking spots and a few picnic tables. There was no one around and as I set up I could tell that the traffic zipping by not to far away might be a reason that more people don’t frequent this area. No matter! I got set up and got to work!
New Fangled Picnic Tables

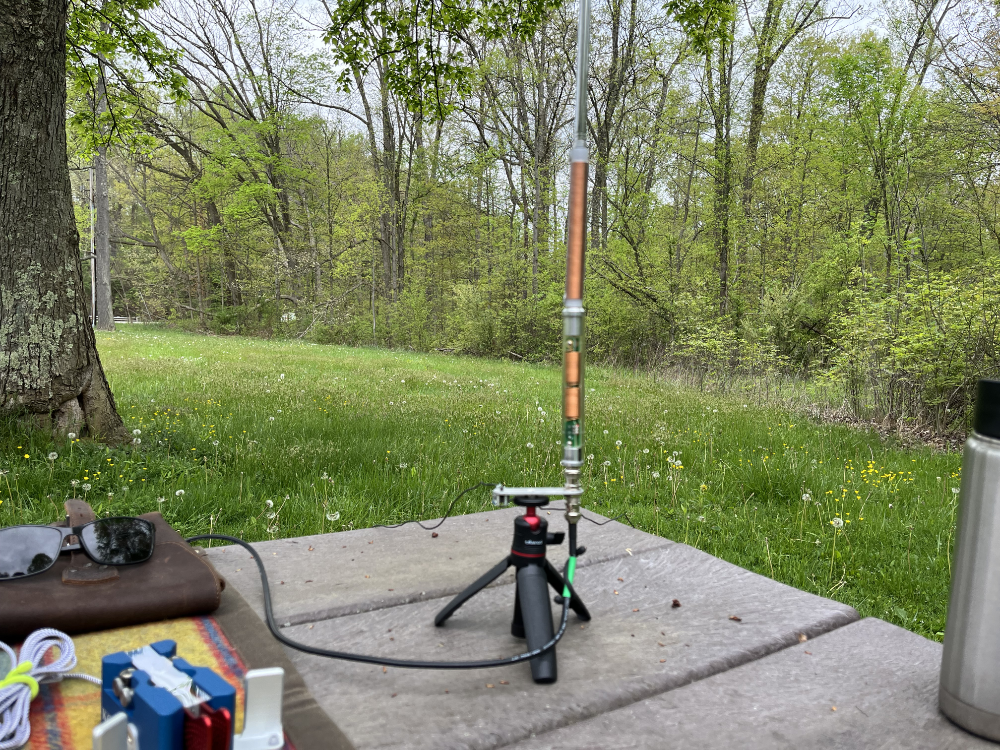

The tables at the picnic area are the newer ones that I have seen in the park. They are quite thick. In fact, they are far too thick for the clamp mount that I have for my AX1 (more on the mount below!). I had wondered about this because I couldn’t recall if the Quarry area had those tables as well, so I tossed my mini-tripod in the backpack just in case. I’m glad I did!
Slow

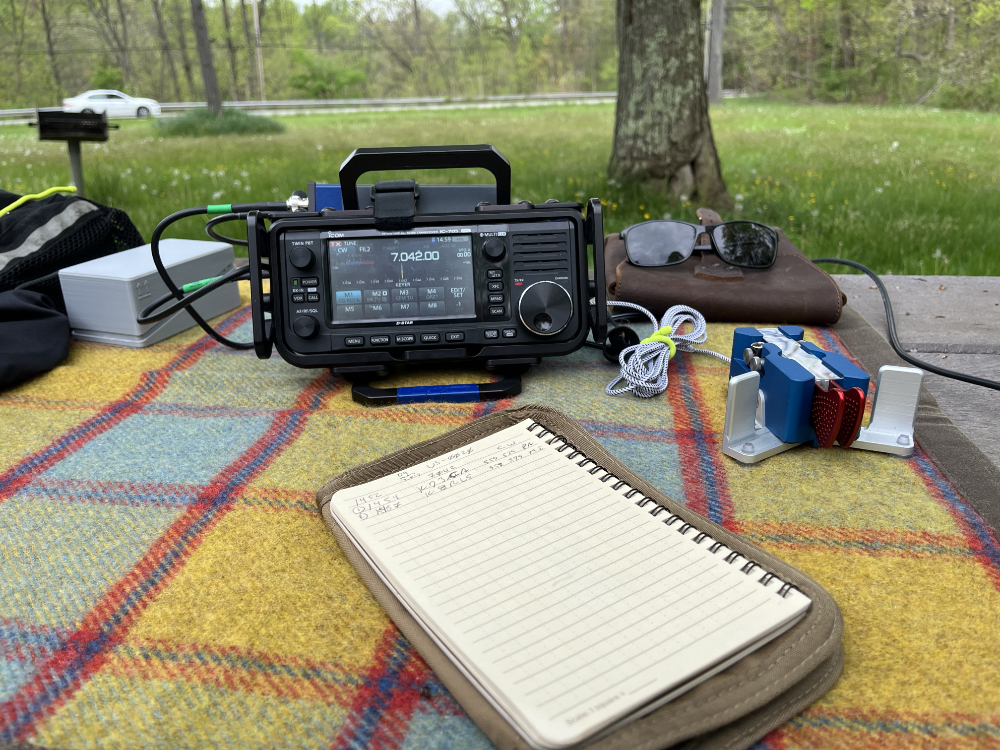

I deployed the IC-705 and my Begali Traveler. I was set up for 40-meters and got to work. It was very slow going. There was the activity on the band, but contacts were few and far between. I stalled out after 3 contacts on 40. It was just a lot of calling CQ and a lot of silence coming back at me. Time to move to 20-meters!

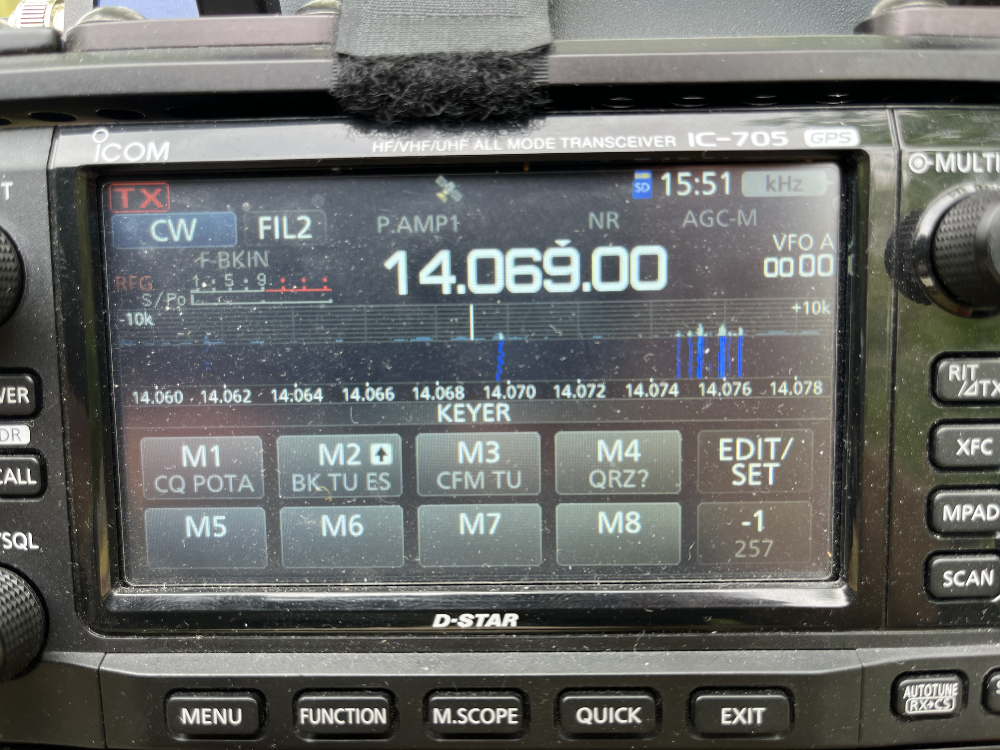

The last time I was out, I sat on 14.069 and not for nothing. The waterfall on the IC-705 puts the 14.074 on the far right of the screen if I’m centered on 14.069. That means I can see the FT8 and FT4 traffic. This was very, very useful. As I was calling CQ and listening, I could see the bands fade in and out as I watched that traffic ebb and flow. It’s a handy little trick that I plan to use more often when things are questionable.
As one might imagine, it was slow. The time between QSOs was long. The bands were coming and going. When they were up, things were great! When they were down, I couldn’t hear a thing other than the occasional crash. After about 90 minutes, I had my 10 contacts. 10 minutes more and nothing heard. It was time to go QRT and get lunch with my son.

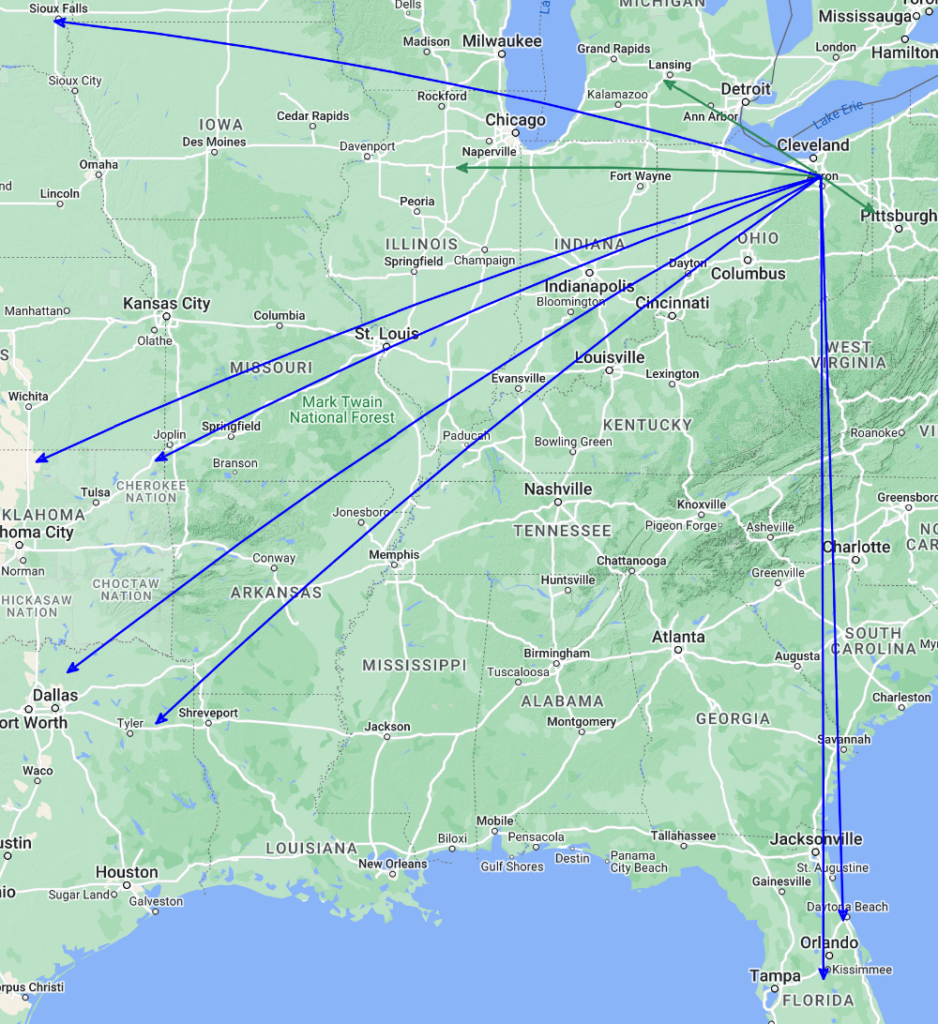

QSO Map
Here’s what my patience got me on the QSO Map:
A Note On The AM1
I mentioned my antenna mount above. I have the AM1 Portable Antenna Mount System from ProAudio Engineering. It is a wonderful mount for the AX1. It attaches well to normal picnic tables and even to the cargo cage of my Jeep. I take it everywhere. But I did notice something about it early on. It seemed that I got much better results attaching the counterpoise of the AX1 to the ground lug of my IC-705 rather than the lug on the antenna mount. I didn’t give it much thought because I found a setup that worked and I stuck with it. On Friday, I got an email from ProAudio saying that there was an issue with the lockwasher on the unit that wasn’t allowing a connection between the BNC connector and the lug. I got out the old meter and, yup, that was the case. A couple of moments with a file around the edges where the BNC connector passes through to remove the thick anodized coating and BOOM the meter confirmed that things were flowing where they ought to flow. I wasn’t able to play with that this weekend as the table was too thick for the mount, but I’m confident I will have improved results in the field.
Final
Another “struggle” of an activation with the bands being less than helpful. I still got to sit outside with my radio and enjoy The Big Blue Room. It felt good and it was far better than being indoors for sure. I’m not sure I will hit that spot again as the traffic noises kept a lid on the outdoor vibes, but it’s a place to remember when there are crowds elsewhere.
Thanks for reading along and 72!
